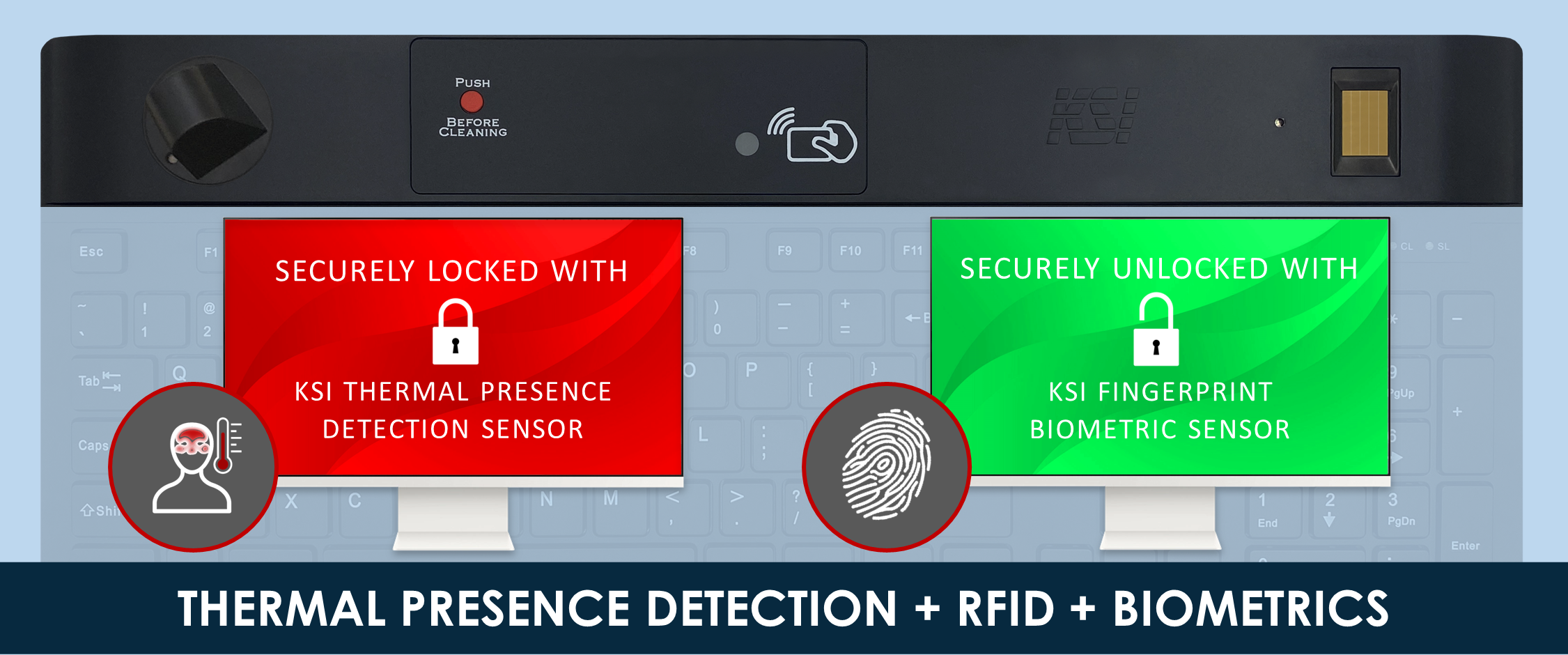

KSI Thermal Presence Detection Keyboard

➥ Logon with secure biometric fingerprint authentication

➥ Tap in with contactless RFID

➥ Logoff with silent, walkaway thermal presence detection protection

➥ Secure logon, logoff:  Problem solved!

All your vacant desktops remain secured with our thermal presence detection solution.  No more unsecured desktops due to users forgetting to lock their PCs.  No more annoying lock screens throughout the day that drag down productivity.

Our integrated, articulating Omron MEMS thermal sensor uses infrared technology to detect human presence — allowing for convenient, secure user walkaway logoff without software.  Timeout is adjustable and logoff is silent.  The sensor prevents an unauthorized person from accessing an active session at a vacant desktop and locks the PC in as little as 5 seconds — guaranteed to lock within 60 seconds.  Onboard programming finetunes our thermal sensor to the user environment and can be combined with other best-of-the-best solutions in secure authentication, such as mobile, hands-free OTP, and proximity.

Logon is secured with biometric fingerprint authentication — the user’s PC is securely unlocked with an easy finger press.  Setup takes just a few minutes in Windows Hello and leading healthcare single-sign-on platforms.  Our integrated HID® reader is also key in the healthcare environment for meeting DEA-mandated ePrescribe regulation and achieving multifactor desktop security.

Our configurable, contactless rf IDEAS® dual frequency card reader — 125 kHz and 13.56 MHz — recognizes four card types and is an essential part of your identity management multifactor logon strategy.  Fast tap in, tap out is easy, and hygienic.  Together with biometrics, RFID provides multifactor authentication that makes your desktop that much more secure.

KSI’s patented LinkSmart® with San-a-Key® software is a complete infection control solution and IP compliance monitoring tool for the clinical desktop — aiding in the prevention of hospital-acquired infections that can cause severe illness and death.  Our easy-clean, low-profile keys prevent debris and germs from hiding around and beneath.

Our new solution unclutters the desktop without sacrifice to workstation or cart space, and we use only top-notch components to protect your patient health records and other sensitive data.


  • Integrated HID® fingerprint sensor secures logon
  • Configurable rf IDEAS® OEM-805N21KU-X dual band reader — 125 kHz and 13.56 MHz — reads four card types
  • Fingerprint reader and RFID badge reader, combined, offer multifactor authentication
  • Solution meets EPCS two-factor DEA requirement for ePrescribe
  • Compatible with leading healthcare SSOs, including Imprivata®
  • Adjustable Omron thermal sensor detects human presence for secure walkaway logoff
  • Patented LinkSmart® push-to-clean keyboard locking system
  • Low-profile keys are disinfected with germicidal wipes
  • Optional, free San-a-Key® Lite software guides user-defined cleaning
  • Optional enterprise San-a-Key® monitors IP compliance
  • All security and infection control features routed through one cable
  • Conserves valuable thin and zero client ports

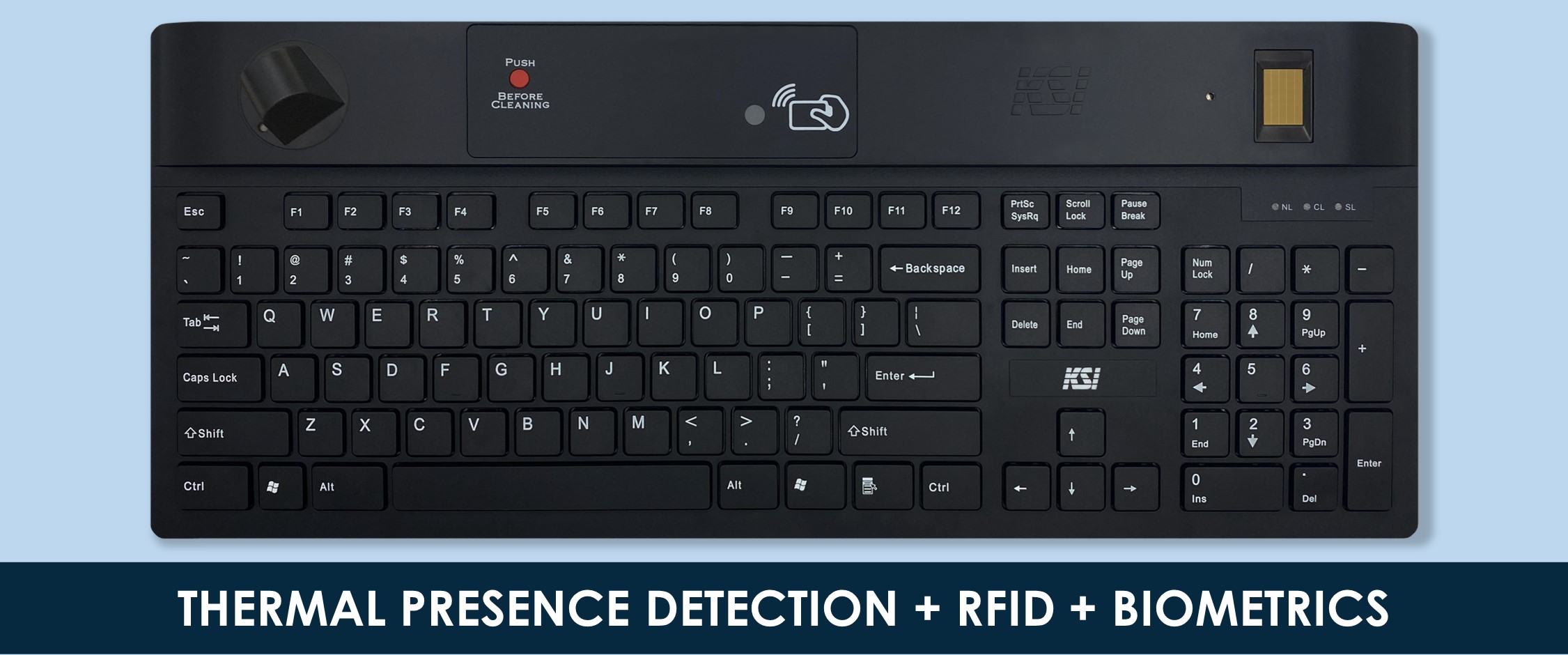

  • Full-sized, 108-key layout fits most medical carts
  • Inquire about colors and international layouts

Typical Applications

Banking & Finance
Call Centers

Technical Specifications

Weight:  2.10 lbs.
Dimensions: 7-1/4″ D x 17-3/4″ W x 1-1/8″ H
Available in Black (Inquire about other colors)

KSI patented LinkSmart® cleaning button
HID® silicon-surfaced 500 dpi fingerprint sensor
rf IDEAS® OEM-805N21KU-X dual band reader — 125 kHz and 13.56 MHz
Articulating Omron MEMS infrared thermal sensor
> Sensor field of view 58° vertical, 58° horizontal
> Sensor temperature read range +5 to +45 degrees C
> Thermal sensor timeout adjustable
Windows 8, 10, 11, Linux, macOS, and IGEL OS compatible
Thin and zero client compatible
High-speed USB interface

Germicidal Wipes Certified for Use

Use only germicidal wipes that contain United States EPA-approved, hospital-grade disinfectants.


Toxic (Requires Mask and Gloves)

CaviWipes™ Surface Disinfectant
Clinell® Universal Wipes
Clorox Healthcare® Bleach Germicidal Wipes
Clorox Healthcare® Hydrogen Peroxide Disinfectant Wipes
Clorox Dispatch® Hospital Cleaner Disinfectant Towels
Ecolab® Disinfectant 1 Wipes
Ecolab® Quaternary Disinfectant Wipes
Opti-Cide® Surface Wipes
PDI® Sani-Cloth Bleach Germicidal Disposable Wipes
PDI® Sani-Cloth AF3 Germicidal Disposable Wipes
PDI® Super Sani-Cloth Germicidal Disposable Wipes
PDI® Sani-Cloth AF Germicidal Disposable Wipes
PDI® Sani-Cloth Bleach Germicidal Disposable Wipes
PDI® Sani-Cloth HB Germicidal Disposable Wipes
PDI® Sani-Cloth Prime Germicidal Disposable Wipes

We’d love to hear from you.  Please send us an inquiry for product pricing, free 60-day evaluation unit, or any questions you may have about KSI products or service.
