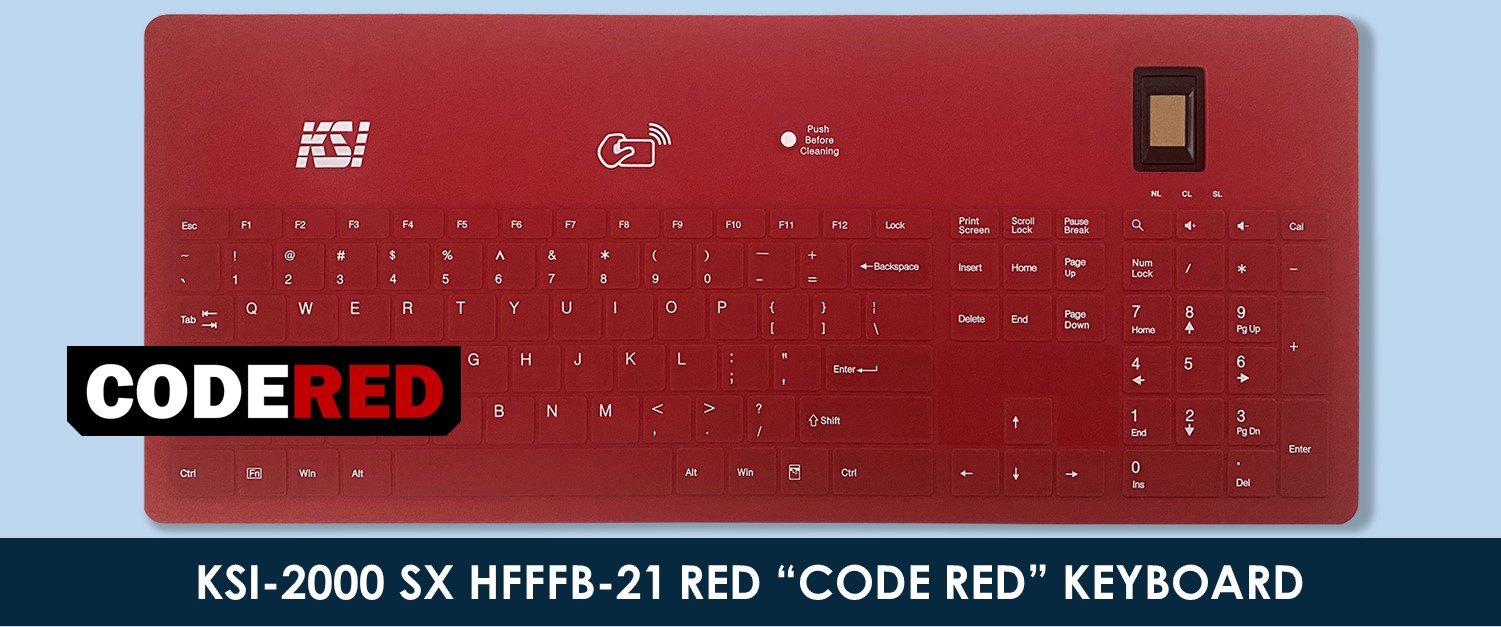

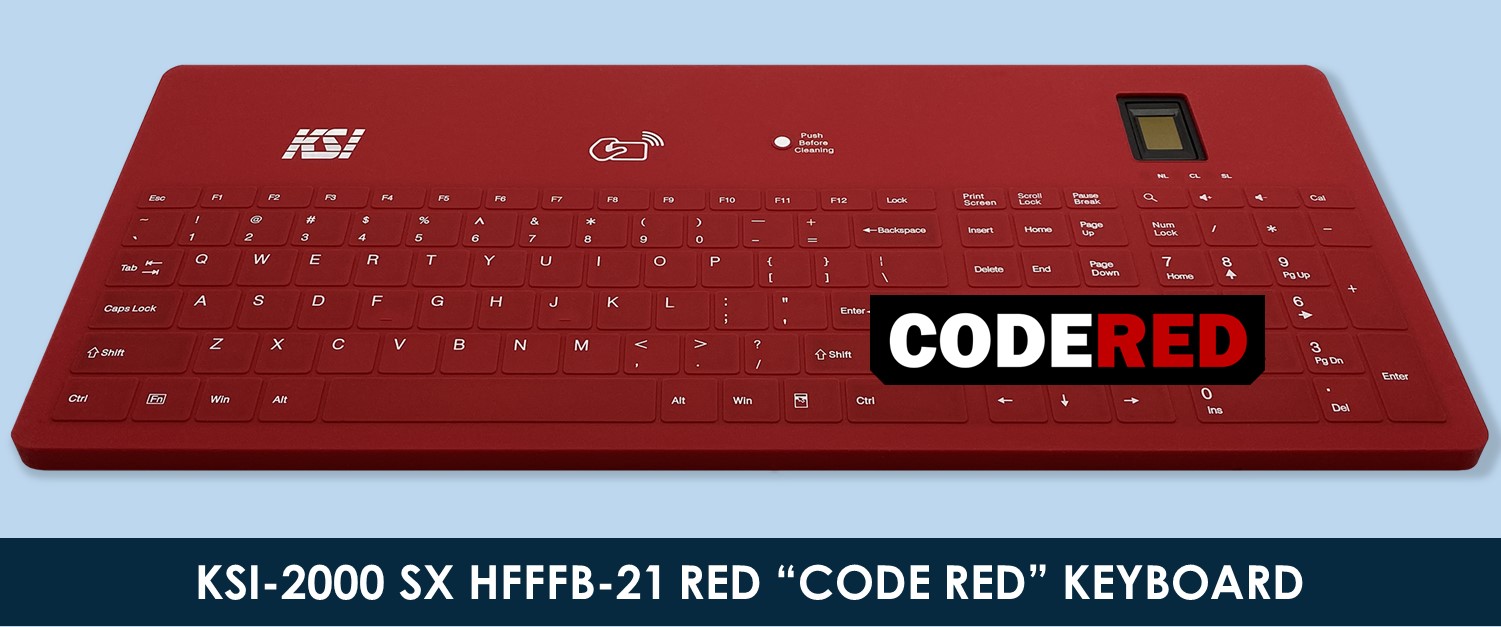

KSI-2000 SX HFFFB-21 RED

Infection and Access Control for the Clinical Desktop

Key Features

  • Red finish helps identify designated healthcare downtime workstations
  • LinkSmart® cleaning button with optional San-a-Key® software
  • rfIDEAS WaveID® Plus contactless proximity card reader
  • HID® 500 dpi biometric fingerprint reader
  • Multifactor authentication security
  • DEA ePrescribe ready
  • Smooth, silicone surface can be disinfected with wipes, sprayed with cleaners, and scrubbed with soap
  • Fits standard medical carts

Description

Our full-sized 2000 series CodeRed downtime workstation keyboard offers a strong visual cue that a workstation is a designated downtime workstation, used in instances of power outage and scheduled server maintenance.  Clinicians are able to easily identify which workstations IT has designated as downtime workstations.

Designed for infection control and patient health information security, the KSI-2000 SX HFFFB-21 RED is a hospital-grade, disinfectable keyboard with integrated proximity card reader, fingerprint biometric reader, and our patented LinkSmart® cleaning button.

The keyboard features a durable, impervious silicone surface that prevents the growth of harmful bacteria.  The perfect size for placement on medical carts, productivity never suffers when using the KSI 2000 series during patient bedside care.

A simple push of KSI’s LinkSmart® cleaning button is all it takes to temporarily disable keys while an end user disinfects the keyboard surface.  San-a-Key® software’s onscreen, animated keyboard schematic then guides keyboard cleaning until the entire surface is clean.   Hospital administrators can count on user-defined, scheduled cleaning options and pop-up reminders pushed to all desktops to ensure KSI keyboards are kept clean 24/7.

The keyboard’s integrated rf IDEAS WaveID® Plus proximity card reader and HID® fingerprint reader are compatible with leading healthcare single sign on authentication platforms, including Imprivata®, HealthCast, and many more.  The proximity card reader now reads four credential types, an enhancement over our legacy -16 product line.  Credential types can be configured in the specific priority order you choose.  The keyboard’s integrated HID® fingerprint reader provides the first factor in two-factor authentication required to meet ePrescribe compliance.

The KSI-2000 SX HFFFB-21 RED is a tool for downtime workstations, infection control, and electronic health records security.

Features

  • Downtime workstation red finish
  • LinkSmart® push-to-clean keyboard locking system
  • Durable, chemical-resistant, scrubbable surface
  • Quick and easy disinfection with standard, approved wipes
  • San-a-Key® real-time monitoring of infection prevention compliance and generation of analytics
  • Dual band rfIDEAS Wave ID® Plus contactless, programmable proximity card reads four credential types
  • HID® 500 dpi biometric fingerprint reader
  • Multifactor security
  • DEA ePrescribe ready
  • Detachable USB for convenient removal without impact to cabling bundle
  • Government and healthcare compliant
  • Soft-to-touch full travel keys
  • Efficient footprint fits most standard medical carts
  • Quiet, unobtrusive operation for bedside use
  • Compatible with leading SSO platforms

Compliance

GSA FIPS 201
HIPAA
DEA ePrescribe

Keyboard Specifications

  • Dimensions:  17-3/4″ x 7-1/4″ x 1-1/8″
  • Red finish; also available in black; inquire about custom colors
  • High speed USB interface
  • Integrated rf IDEAS Wave ID® Plus OEM-805N21KU-X 125 kHz & 13.56 MHz contactless card reader

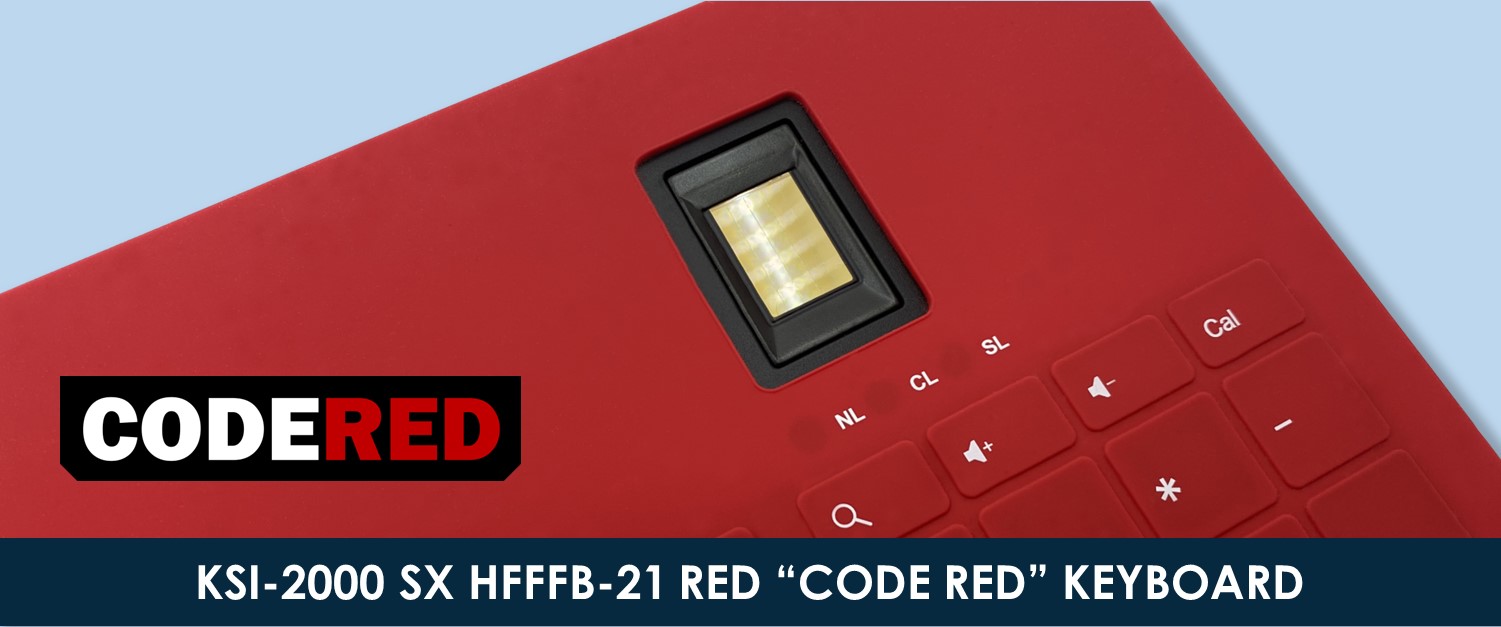

  • Integrated capacitive HID® TCS1CD 500 dpi fingerprint sensor
  • Integrated, patented KSI LinkSmart® cleaning button
  • Windows 8, 10, 11, Linux, macOS, and IGEL OS compatible

Card Reader Specifications

  • rf IDEAS WaveID® Plus OEM-805N21KU-X dual frequency contactless proximity card reader
  • Typical maximum read range: 1.0” – 3.0” (2.5 – 7.6cm) dependent upon proximity card type and environmental conditions
  • Power supply: USB self-powered
  • Indicators: Adjustable beeper volume (off, low, medium, high)
  • Operating humidity range: 5% to 95% relative humidity, non-condensing
  • Operating temperature range: -20° to 150°F (-30° to 65°C)
  • Certifications: FCC, Industry Canada, CE Mark, RCM, RoHS, Reach, and more than 50 countries

Fingerprint Sensor Specifications

  • Capacitive HID® TCS1CD fingerprint sensor
  • FIPS 201 compliant
  • Resolution: 508 DPI meets FBI iAFIS requirement
  • 8-bit per pixel gray scale
  • Up to 12 frames per second capture rate
  • 8-bit RAM interface
  • 20-pin 0.5mm pitch flat flex cable connector
  • 27 x 20.4mm outline & only 3.5mm thick (~1/8”)
  • Power: 20mA during capture (typical)
  • 1ma during sleep (typical)
  • 4.4v to 5.5v (standard image mode, no bezel)
  • 4.5v to 4.6v (FIPS-201 & EIM mode w/bezel)
  • +/- 15 KV ESD (IEC 61000-4-2 level 4)
  • 2M fingerprint placements (FIPS-201 standard coating)
  • 4M fingerprint placements (SteelCoat coating)
  • Environment: -30 to +85C operating
  • -40 to +85 storage
  • RoHS compliant

Use only germicidal wipes that contain United States EPA-approved, hospital-grade disinfectants.

Germicidal Wipes Certified for Use with Our LinkSmart® Keyboards



Toxic (Requires Mask and Gloves)

CaviWipes™ Surface Disinfectant
Clinell® Universal Wipes
Clorox® Healthcare Bleach Germicidal Wipes
Clorox® Healthcare Hydrogen Peroxide Disinfectant Wipes
Clorox® Dispatch Hospital Cleaner Disinfectant Towels
Ecolab® Disinfectant 1 Wipes
Ecolab® Quaternary Disinfectant Wipes
Opti-Cide® Surface Wipes
PDI® Sani-Cloth Bleach Germicidal Disposable Wipes
PDI® Sani-Cloth AF3 Germicidal Disposable Wipes
PDI® Super Sani-Cloth Germicidal Disposable Wipes
PDI® Sani-Cloth AF Germicidal Disposable Wipes
PDI® Sani-Cloth Bleach Germicidal Disposable Wipes
PDI® Sani-Cloth HB Germicidal Disposable Wipes
PDI® Sani-Cloth Prime Germicidal Disposable Wipes
