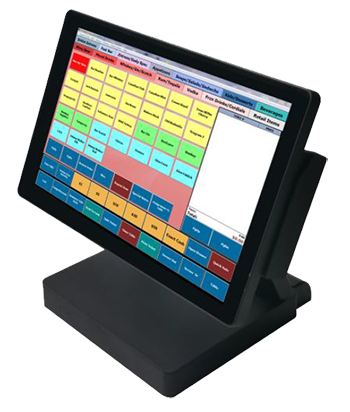

POS-156Z AIO Terminal

POS-156Z AIO Terminal:

A durable 15.6″ all-in-one terminal built for modern POS environments

The POS-156Z is a 15.6″ all-in-one POS terminal designed for point-of-sale and other industrial control environments where durability, usability, and serviceability are essential. Featuring a tempered-glass display and a fanless base design with robust dual die-cast arms, the POS-156Z supports clean installations and dependable day-to-day operation. Multiple Intel® CPU platform options are available to align performance with your application requirements.

Main Features

15.6 AIO terminal, designed for POS and other industrial control
Robust, slim display constructed of tempered glass
Motherboard is installed on the bottom fan-less design PC box
High-quality electronic industrial components for absolute reliability
Robust dual die-cast arms interconnect the panel with the PC box
Supports several Intel® CPU platforms: Celeron, i3-Core, i5-Core and i7-Core
Clear and bright 1366 x 768 16:9 touch display is intuitive to operate
Ambient light sensor adjusts to the environment
Full functionality, even with wet fingers or latex gloves
Second display can be installed between two robust arms
USB-C ports located on the hinge cover for easy service support
Removeable SSD cover for easy replacement of NVMe SSD
Can be equipped with optional magstripe reader, RFID reader, 32-key keypad and fingerprint reader

With its fold-flat, space-saving design for efficient shipping and deployment, the POS-156Z is built to support scalable rollouts across diverse POS environments. Optional accessories — including second-display configurations and add-ons such as magstripe and RFID readers, keypad, and fingerprint reader — allow you to tailor the system to your workflow and customer experience goals. Contact us to confirm available configurations and options for your specific deployment.

Product Specifications

Windows Operating System
Processor CPU: Intel® Celeron® Processor J6412
Frequency: Up to 2.6GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel UHD Graphics
Display Graphic Memory: Shared System Memory up to 1.7GB SDRAM
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DB15 VGA (with built-in power, replacing 1 x DB9)
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: SATA III SSD 120GB (Default), with SSD cover, easily replaced
Storage, Secondary: M.2 (NGFF) Key-B/B + M Slot (SATA SSD, 2242/2260/2280)
I/O Interface: Main USB — 4 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 2 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 5A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: Intel® i3-1115G4
Frequency: Up to 4.1GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel UHD Graphics
Display Graphic Memory: Shared System Memory up to 1.7GB SDRAM
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DP ++ Port: up to 4096 x 2160 @60Hz
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: SATA III SSD 120GB (Default), with SSD cover, easily replaced
Storage, Secondary: M.2 (NGFF) Key-M Slot (PClex4 NVMe SSD, 2242/2280)
I/O Interface: Main USB — 4 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 2 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Op
tional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 7A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: Intel® i5-1115G4
Frequency: Up to 4.2GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel Iris Xe Graphics
Display Graphic Memory: Shared System Memory up to 1.7GB SDRAM
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DP ++ Port: up to 4096 x 2160 @60Hz
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: SATA III SSD 120GB (Default), with SSD cover, easily replaced
Storage, Secondary: M.2 (NGFF) Key-M Slot (PClex4 NVMe SSD, 2242/2280)
I/O Interface: Main USB — 4 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 2 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 7A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: ARM Rockchip RK3568, Quad-core Cortex-A55
Frequency: Up to 2.0GHz
Storage, Primary: SSD 32GB eMMC
Display Controller: Mali-G52
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Ethernet, Controller: Gigabit Ethernet
I/O Interface: Main USB — 4 x USB-A 3.0, 4 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the top of the back cover)
I/O Interface: Service Support USB-C (on the side of the back cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 2 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 5A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: Intel® Alder Lake N Series Processor
Number of Cores: 4E
Frequency: Up to 3.60GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel UHD Graphics
Display Graphic Memory: Up to 24 EUs, 1.20Ghz
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DB15 VGA (with built-in power, replacing 1 x DB9)
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: M.2 (NGFF) Key B/B+M Slot (SATA SSD, 2242/2260/2280)
I/O Interface: Main USB — 2 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 1 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 5A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: Intel® 12th i3-1215U
Number of Cores: 2P4E
Frequency: Up to 4.4GHz/3.3GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel UHD Graphics
Display Graphic Memory: Up to 64 EUs, 1.10Ghz
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DP ++ Port: up to 4096 x 2160 @60Hz
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: M.2 (NGFF) Key-M Slot (PClex4 NVMe SSD, 2242/2280)
I/O Interface: Main USB — 2 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 1 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 7A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: Intel® 12th i5-1235U
Number of Cores: 2PBE
Frequency: Up to 4.4GHz/3.3GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel Iris Xe Graphics
Display Graphic Memory: Up to 80 EUs, 1.20Ghz
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DP ++ Port: up to 4096 x 2160 @60Hz
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: M.2 (NGFF) Key-M Slot (PClex4 NVMe SSD, 2242/2280)
I/O Interface: Main USB — 2 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 1 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 7A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)

Windows Operating System
Processor CPU: Intel® 12th i7-1255U
Number of Cores: 2PBE
Frequency: Up to 4.7GHz/3.5GHz
Memory: Supports DDR4 3200MHz, 1*non-ECC SO-DIMM Slot
Maximum Capacity: Up to 32GB
Display Controller: Intel Iris Xe Graphics
Display Graphic Memory: Up to 96 EUs, 1.25Ghz
Main Display Resolution: 15.6″ (1366 x 768), ratio 16:9
Display Active Area: 344.232 x 193.536 (mm)
Display Luminance: 220cd/m2
Display Viewing Angle (R/L/U/B): 45/45/20/40
Display Touch Panel: PCAP, USB protocol
Second Display 1: HDMI (Type A) up to 4096 x 2160
Second Display 2: Optional: DP ++ Port: up to 4096 x 2160 @60Hz
Ethernet, Controller: Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Storage, Primary: M.2 (NGFF) Key-M Slot (PClex4 NVMe SSD, 2242/2280)
I/O Interface: Main USB — 2 x USB-A 3.0, 2 x USB-A 2.0
I/O Interface: USB Second Display USB-C (on the base of the top cover)
I/O Interface: Service Support USB-C (on the back of panel cover)
I/O Interface: Audio — Line-Out/MIC 2 in 1 3.5mm Jack
I/O Interface: Serial — 1 x DB9 COM
I/O Interface: VGA (Optional) DB15 VGA with built-in 12V power (replacing 1 x DB9)
I/O Interface: DC Out 12V, 5.5 x 2.1mm type, for secondary display
I/O Interface: Powered USB Optional 1 x USB 12V, 1 x USB 24V (replacing 1 x DB9)
Options: Side MSR / Keypad with optional 24-key programmable keypad / magstripe reader / RFID reader / fingerprint reader
Power Adaptor Input: Universal AC 100~240V, 50/60 Hz
Power Adaptor Output: DC +12V 7A
Environment: Storage Temperature ~15°C ~ 55°C
Environment: Operation Temperature: ~0°C ~ 40°C
Environment: Operation Humidity 10% ~ 85%
Dimensions, Panel: 380 x 337 x 251 (mm)
