KSI-2000 SX HCFFFB-21 RED

Infection Prevention and Access Control

Key Features

  • Red finish helps identify designated healthcare downtime workstations
  • Imprivata® Confirm ID compatible for ePrescribe compliance and hands-free mobile authentication
  • LinkSmart® cleaning button with optional San-a-Key® software
  • rfIDEAS WaveID® Plus contactless proximity card reads four credential types
  • HID® 500 dpi biometric fingerprint reader
  • Multifactor authentication
  • Smooth, silicone surface can be disinfected with wipes, sprayed with cleaners, and scrubbed with soap
  • ePrescribe-ready
  • Detachable USB for convenient removal without impact to cabling bundle
  • Fits standard medical carts

Description

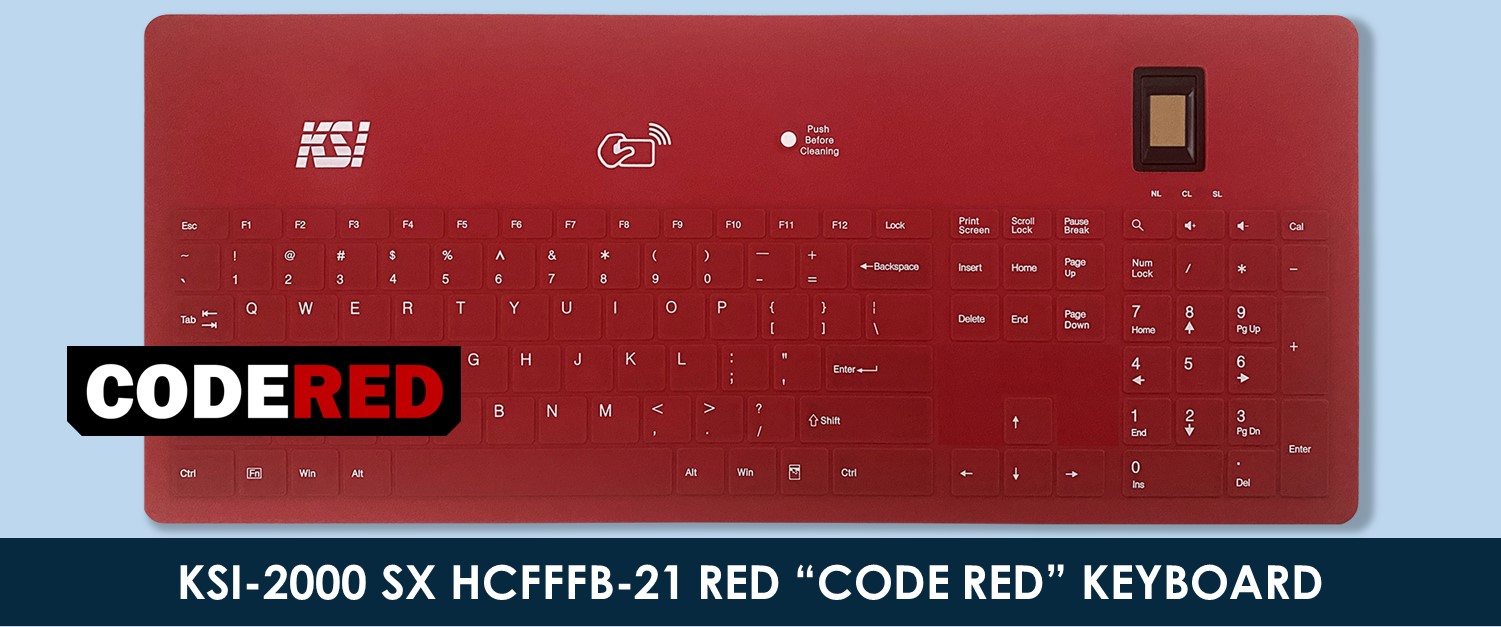

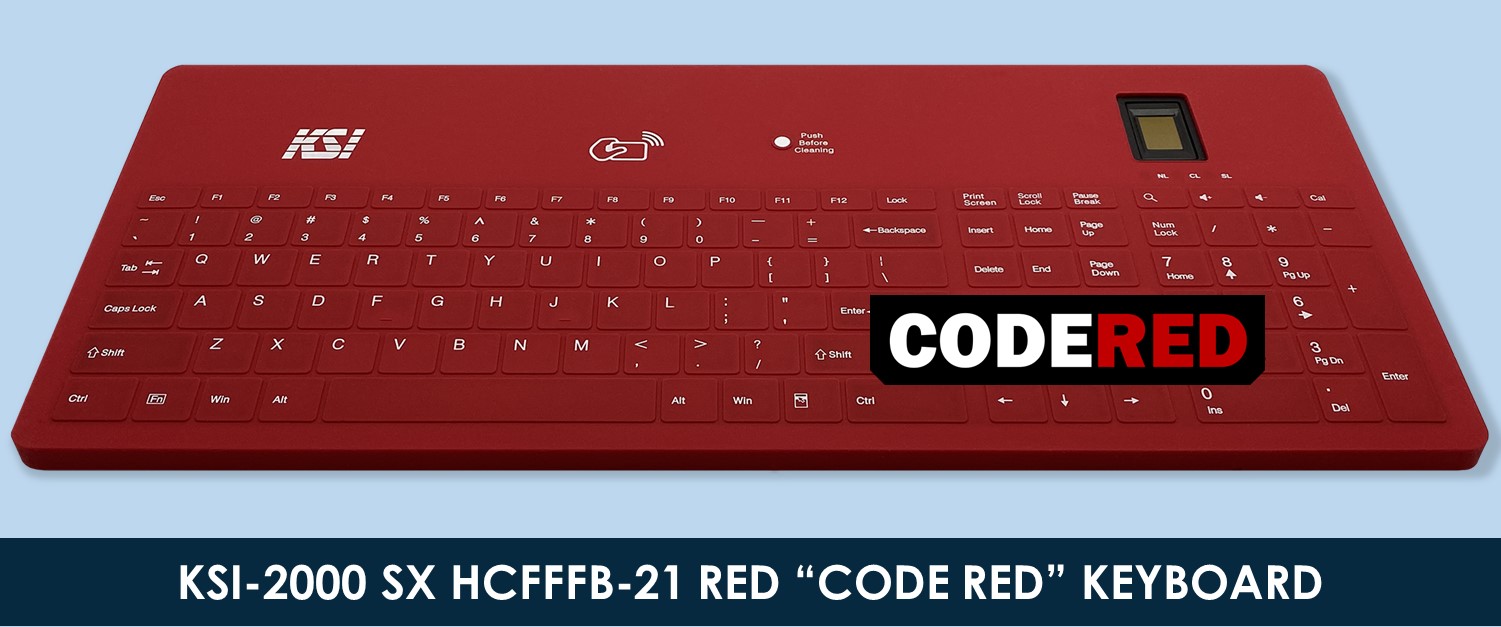

Our full-sized 2000 series CodeRed downtime workstation keyboard offers a strong visual cue that a workstation is a designated downtime workstation, used in instances of power outage and scheduled server maintenance.  Clinicians are able to easily identify which workstations IT has designated as downtime workstations.

Designed for infection control and patient health information security, the KSI-2000 SX HCFFFB-21 RED is a hospital-grade, disinfectable keyboard with integrated proximity card reader, biometric fingerprint sensor, our patented LinkSmart® cleaning button, and Imprivata® Confirm ID compatibility.  Our covered keyboard features a smooth, crevice-free surface that discourages the collection of dirt and germs that accumulate beneath and around keys on a traditional keyboard.

A simple push of KSI’s LinkSmart® cleaning button is all it takes to temporarily disable keys while an end user disinfects the keyboard surface.  San-a-Key® software’s onscreen, animated keyboard schematic then guides keyboard cleaning until the entire surface is clean.   Hospital administrators can count on user-defined, scheduled cleaning options and pop-up reminders pushed to all desktops to ensure KSI keyboards are kept clean 24/7.  LinkSmart® keyboards offer an easy system that reinforces the need for cleaning vigilance — a better solution than waterproof keyboards that must be removed from service to be disinfected in a dishwasher.

The keyboard’s integrated rf IDEAS WaveID® Plus proximity card reader and HID® biometric fingerprint reader are compatible with Imprivata® OneSign and Confirm ID authentication platforms that are mission critical to protecting patient health information.  The KSI-2000 SX HCFFFB-21 RED provides the first factor of two-factor authentication for meeting DEA-mandated electronic prescription requirements using Imprivata® Confirm ID.  Our proximity card reader now reads four credential types, an enhancement over our legacy -16 product line.  Credential types can be configured in the specific priority order you choose.

The KSI-2000 SX HCFFFB-21 RED is a tool for downtime workstations, infection control, and electronic health records security — a smarter, more sensible alternative to waterproof keyboards.

Features

  • Downtime workstation red finish
  • LinkSmart® push-to-clean keyboard locking system
  • Durable, chemical-resistant, scrubbable surface
  • Quick and easy disinfection with standard, approved wipes
  • Optional San-a-Key® software real-time monitoring of infection prevention compliance and generation of analytics
  • Pro-grade HID® 500 dpi biometric fingerprint reader
  • Dual band rfIDEAS Wave ID® Plus contactless, programmable proximity card reads four credential types
  • Integrated multifactor authentication
  • ePrescribe, Imprviata® OneSign and Confirm ID ready
  • Detachable USB for convenient removal without impact to cabling bundle
  • All functions routed through one USB conserves zero and thin client ports
  • Soft-to-touch full travel keys
  • Efficient footprint fits most standard medical carts
  • Quiet, unobtrusive operation for bedside use

Compliance

HIPAA
DEA ePrescribe

Keyboard Specifications

  • Dimensions:  17-3/4″ x 7-1/4″ x 1-1/8″
  • Red finish; also available in black; inquire about custom colors
  • High speed USB interface
  • Integrated rf IDEAS Wave ID® Plus OEM-805N21KU-X 125 kHz & 13.56 MHz contactless card reader
  • Integrated, patented KSI LinkSmart® cleaning button
  • Windows 8, 10, 11, Linux, macOS, and IGEL OS compatible

Card Reader Specifications

  • rf IDEAS WaveID® Plus OEM-805N21KU-X dual frequency contactless proximity card reader
  • Typical maximum read range: 1.0” – 3.0” (2.5 – 7.6cm) dependent upon proximity card type and environmental conditions
  • Power supply: USB self-powered
  • Indicators: Adjustable beeper volume (off, low, medium, high)
  • Operating humidity range: 5% to 95% relative humidity, non-condensing
  • Operating temperature range: -20° to 150°F (-30° to 65°C)
  • Certifications: FCC, Industry Canada, CE Mark, RCM, RoHS, Reach, and more than 50 countries

Biometric Sensor Specifications

  • Capacitive HID® TCS1CD fingerprint sensor
  • Resolution: 508 DPI meets FBI iAFIS requirement
  • 8-bit per pixel grayscale
  • Up to 12 frames per second capture rate
  • 8-bit RAM interface
  • 20-pin 0.5mm pitch flat flex cable connector
  • 27 x 20.4mm outline & only 3.5mm thick (~1/8”)
  • Power: 20mA during capture (typical)
  • 1ma during sleep (typical)
  • 4.4v to 5.5v (standard image mode, no bezel)
  • 4.5v to 4.6v (FIPS-201 & EIM mode w/ bezel)
  • +/- 15 KV ESD (IEC 61000-4-2 level 4)
  • 2M fingerprint placements (FIPS-201 standard coating)
  • 4M fingerprint placements (SteelCoat coating)
  • Environment: -30 to +85C operating
  • -40 to +85 storage
  • RoHS compliant

Use only germicidal wipes that contain United States EPA-approved, hospital-grade disinfectants.

Germicidal Wipes Certified for Use with Our LinkSmart® Keyboards



Toxic (Requires Mask and Gloves)

CaviWipes™ Surface Disinfectant
Clinell® Universal Wipes
Clorox® Healthcare Bleach Germicidal Wipes
Clorox® Healthcare Hydrogen Peroxide Disinfectant Wipes
Clorox® Dispatch Hospital Cleaner Disinfectant Towels
Ecolab® Disinfectant 1 Wipes
Ecolab® Quaternary Disinfectant Wipes
Opti-Cide® Surface Wipes
PDI® Sani-Cloth Bleach Germicidal Disposable Wipes
PDI® Sani-Cloth AF3 Germicidal Disposable Wipes
PDI® Super Sani-Cloth Germicidal Disposable Wipes
PDI® Sani-Cloth AF Germicidal Disposable Wipes
PDI® Sani-Cloth Bleach Germicidal Disposable Wipes
PDI® Sani-Cloth HB Germicidal Disposable Wipes
PDI® Sani-Cloth Prime Germicidal Disposable Wipes

We’d love to hear from you.  Please send us an inquiry for product pricing, free 60-day evaluation unit, or any questions you may have about KSI products or service.
